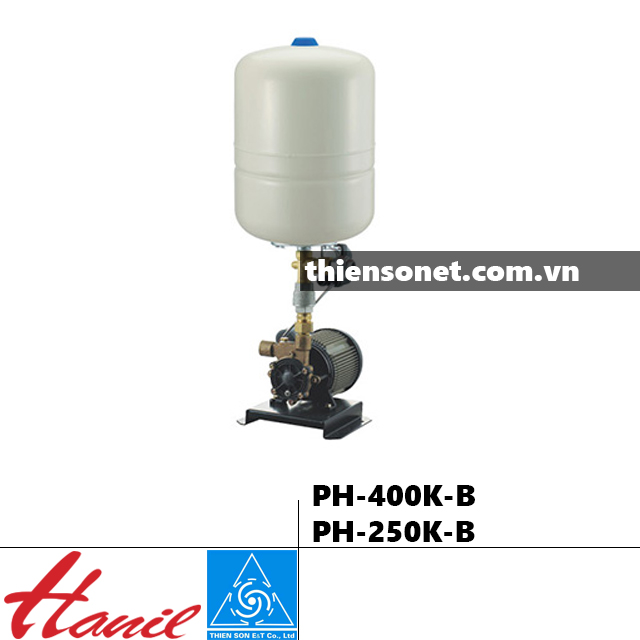

HANIL PH-400K-B 250K-B
Hệ thống máy bơm nước tăng áp
HANIL PH-400K-B
| Voltage | 1Ø 220(V.AC) |
|---|---|
| Output | 1/2(HP) |
| Input | 850(W) |
| Total Head | 22(m) |
| Max. Capacity/ Total Head | 3,530(L/H)(0.5m) |
| Suction Lift | 0(m) |
| Discharge Head | 22(m) |
| SuctionDischarge | 20/20(A)(mm) |
| Weight | 20(kg) |
| Dimension | 948 X 366 X 180 X 310 X 409 (mm) |
HANIL PH-250K-B
| Voltage | 1Ø 220(V.AC) |
|---|---|
| Output | 1/3(HP) |
| Input | 580(W) |
| Total Head | 16(m) |
| Max. Capacity/ Total Head | 2,560(L/H)(0.5m) |
| Suction Lift | 0(m) |
| Discharge Head | 16(m) |
| SuctionDischarge | 20/20(A)(mm) |
| Weight | 15(kg) |
| Dimension | 767 X 342 X 165 X 296 X 363 (mm) |
