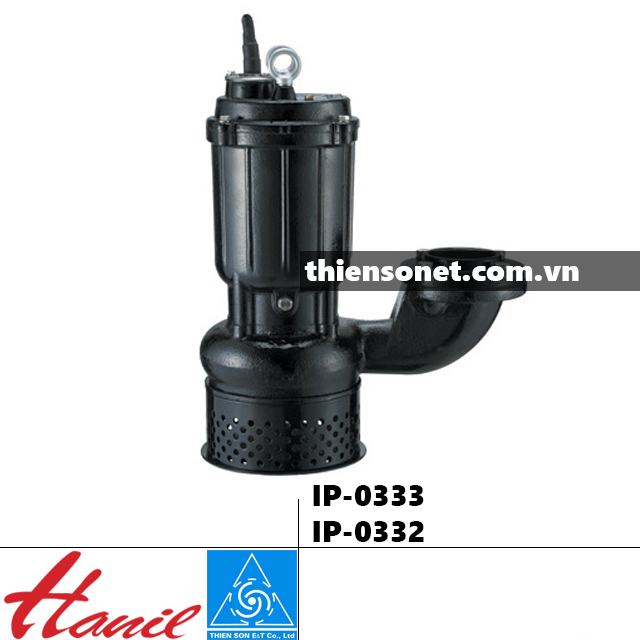

HANIL IP-0333 0332
Máy bơm thả chìm nước thải
HANIL IP-0333
| Voltage | 3Ø 380(V.AC) |
|---|---|
| Output | 3(HP) |
| Full current | 4.2(A) |
| Total Head | 20(m) |
| Max. Capacity/ Total Head | 200(L/min) |
| SuctionDischarge | 80(A)(mm) |
| Lowest water level of operation | 170(mm) |
| Detachable divice | HTO-80 |
| Weight | 51.7(kg) |
| Dimension | 218 X 514 X 417 (mm) |
HANIL IP-0332
| Voltage | 3Ø 220(V.AC) |
|---|---|
| Output | 3(HP) |
| Full current | 6.6(A) |
| Total Head | 20(m) |
| Max. Capacity/ Total Head | 200(L/min) |
| SuctionDischarge | 80(A)(mm) |
| Lowest water level of operation | 170(mm) |
| Detachable divice | HTO-80 |
| Weight | 51.7(kg) |
| Dimension | 218 X 514 X 417 (mm) |
| ProductCode | 105823 |
