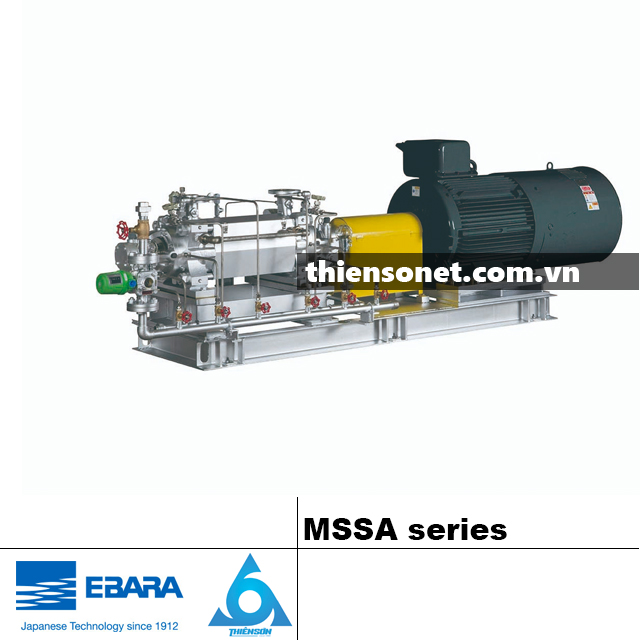

EBARA MSSA series
Máy bơm nước ly tâm trục ngang đa tầng cánh rời trục tiêu chuẩn bằng gang
| Liquid | Water/Boiler feed water(0～165℃) | |||
| Suction requirment | Positive suction pressure or boost | |||
| Allowable suction pressure | 0.8MPa | |||
| Construction | Impeller | Enclosed | ||
| Shaft seal | Non-flushing mechanical seal | |||
| Bearing | Coupling side：Roller bearing | |||
| Opposite coupling side：Ball bearing | ||||
| Flange | Suction side | JIS10K RF | ||
| Discharge side | 40K RF/63K RF | |||
| Materials | Suction casing | SCPH21 | ||
| Intermediate casing | SCPH21 | |||
| Discharge casing | SCPH21 | |||
| Impeller | CA6NM*1 | |||
| Shaft | SCM440 | |||
| Shaft sleeve | SUS304 | |||
