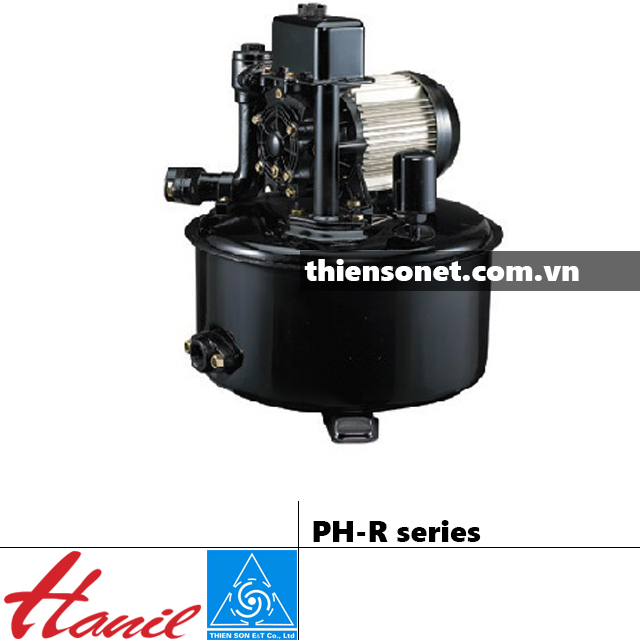

HANIL PH-R series
Máy bơm nước chân không tự động
PH-125R
| Voltage | 1Ø 220(V.AC) |
|---|---|
| Output | 1/6(HP) |
| Input | 300(W) |
| Total Head | 15(m) |
| Max. Capacity/ Total Head | 1,900(L/H)(0.5m) |
| Suction Lift | 8(m) |
| Discharge Head | 7(m) |
| Suction/Discharge | 20(A)(mm) |
| Weight | 12.9(kg) |
| Dimension | 330 X 424 X 320 X 217 X 66 (mm) |
PH-255R
| Voltage | 1Ø 220(V.AC) |
|---|---|
| Output | 1/3(HP) |
| Input | 580(W) |
| Total Head | 24(m) |
| Max. Capacity/ Total Head | 2,560(L/H)(0.5m) |
| Suction Lift | 8(m) |
| Discharge Head | 16(m) |
| Suction/Discharge | 25/20(A)(mm) |
| Weight | 17.4(kg) |
| Dimension | 378 X 487 X 365 X 247 X 70 (mm) |
